DC Chargers

Jupiter V4

Two cars. One compact charger.

Call us

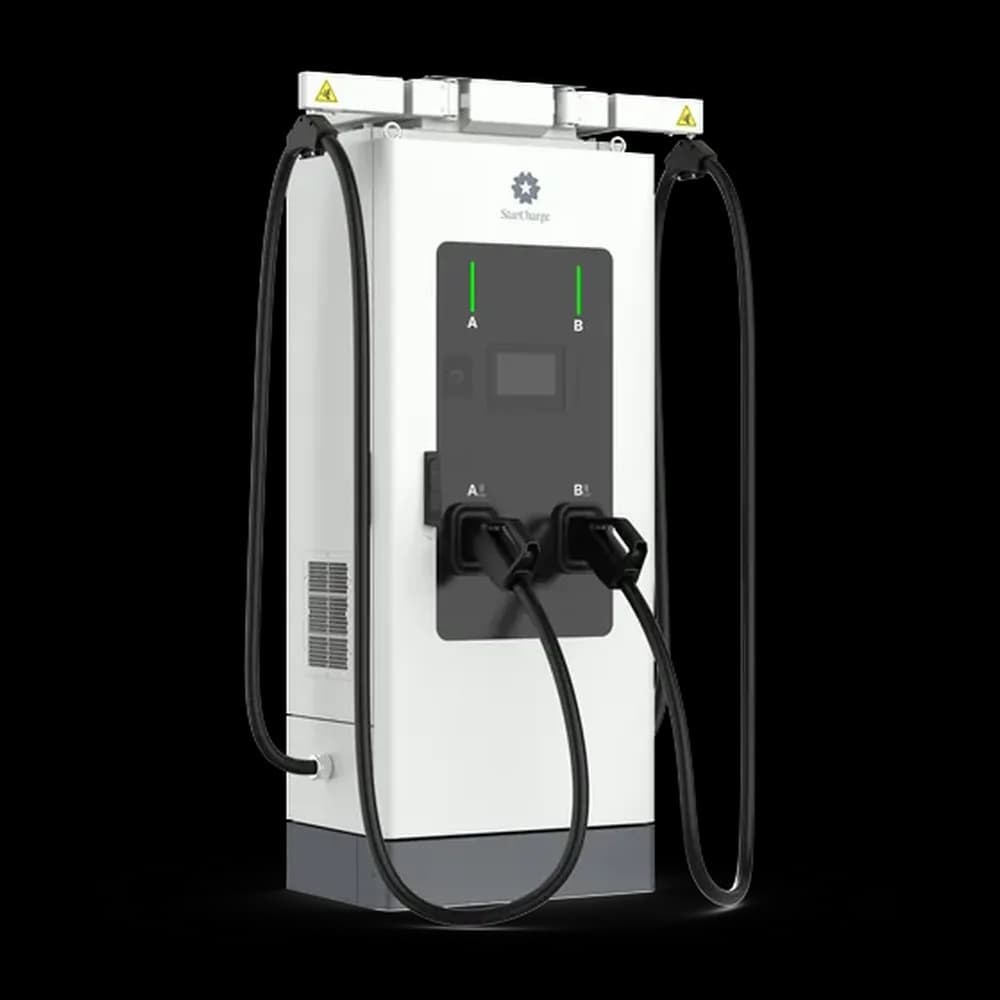

Jupiter V4 EV charger

A 60 kW dual-CCS2 all-in-one DC charger with a 150–1000 V output range, optional cable management and connection to any OCPP 1.6J backend.

Maximum output
60 kW
Connectors
2 × CCS2
Maximum output current
200 A
Peak efficiency
95 %

Highlights

  • 150–1000 V DC output

    A wide output voltage range for today's and tomorrow's vehicles.

  • Two CCS2 connectors

    One compact ground-mounted unit serves two bays.

  • Cable management

    Optional user-friendly cable management system keeps the 5 m cable off the ground with about 4 m of reach.

  • Any OCPP 1.6J backend

    4G, Wi-Fi and Ethernet; DIN 70121 and ISO 15118 vehicle protocols.

  • Built for Thai sites

    IP55 / IK10, C3-M corrosion class, from −30 to +50 °C.

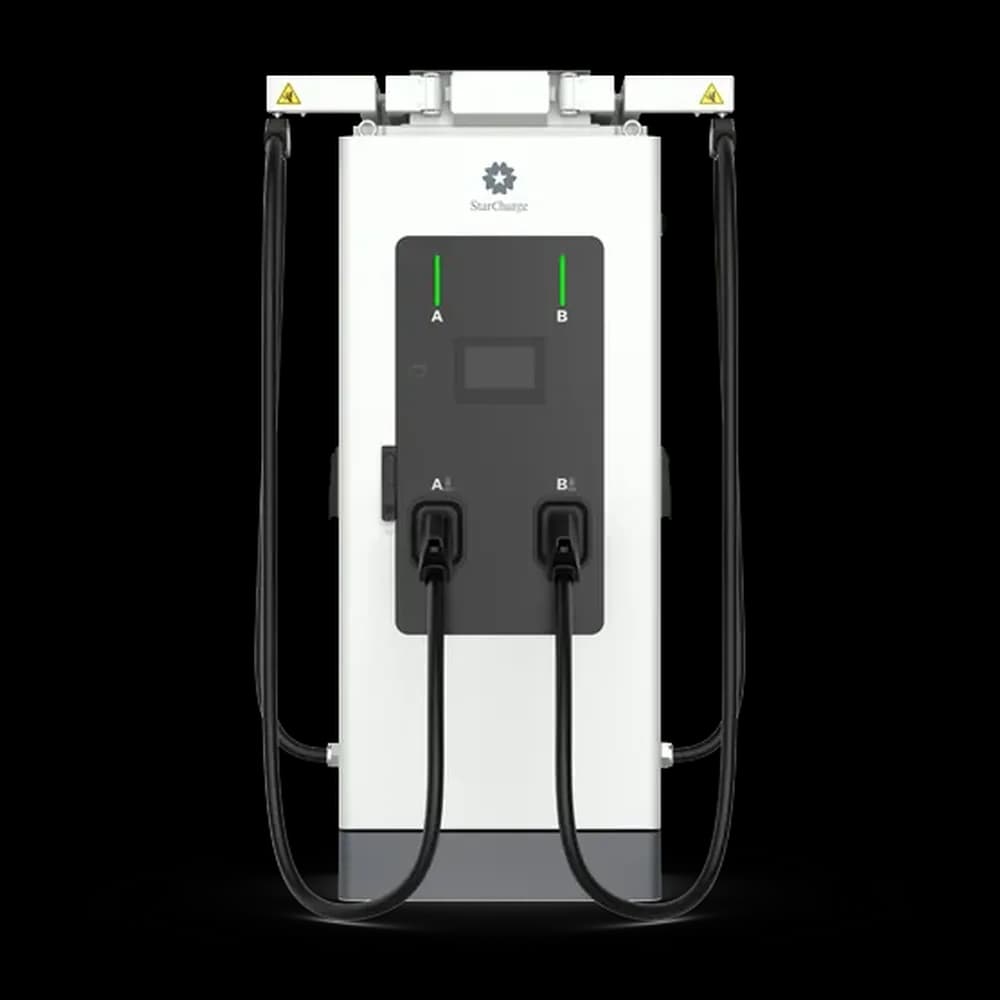

Jupiter V4 EV charger

Double the bays, not the footprint.

  • 150–1000 V DC output
  • 95% peak efficiency
  • Optional cable management
  • Any OCPP 1.6J backend
  • IP55 / IK10, C3-M corrosion class

Technical specifications

Version60 kW
InputInput rating400 V AC ±10%, 3-phase, 50/60 Hz, L1+L2+L3+N+PE (no neutral for IT system)
Input current100 A AC
Power factor≥0.99 at full load
Peak efficiency95%
Grid typeTN-S, TN-C-S, TT
OutputOutput interfaceCCS2 + CCS2
Output power60 kW max.
Output voltage150–1000 V DC
Output current200 A max.
InterfaceDisplay7.0-inch touch screen
LanguageEnglish (others on request)
ButtonsEmergency button
User authenticationRFID card, app (optional)
RFID readerISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
ConnectivityNetwork4G, Wi-Fi, Ethernet
Backend protocolOCPP 1.6J
EV protocolDIN 70121, ISO 15118
EnvironmentOperating temperature−30 to +50 °C (derating above 50 °C)
Storage temperature−40 to +70 °C
Humidity / altitude5–95% non-condensing / ≤2000 m
Corrosion classC3-M
IP / IK ratingIP55 / IK10
CoolingForced air
MechanicalCable length5 m
Cable management reach5 m cable → approx. 4 m operating range (cable off the ground)
Dimensions (W × H × D)700 × 1650 × 470 mm without CMS; 1020 × 1770 × 470 mm with CMS
WeightApprox. 205 kg excl. power modules and CMS; CMS approx. 33 kg; 15 kg per power module
InstallationGround mounting
ComplianceStandardsIEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU
CertificationCE-RED, CB, NBTC, PTEC, PEA list
Version60 kW
Input
Input rating400 V AC ±10%, 3-phase, 50/60 Hz, L1+L2+L3+N+PE (no neutral for IT system)
Input current100 A AC
Power factor≥0.99 at full load
Peak efficiency95%
Grid typeTN-S, TN-C-S, TT
Output
Output interfaceCCS2 + CCS2
Output power60 kW max.
Output voltage150–1000 V DC
Output current200 A max.
Interface
Display7.0-inch touch screen
LanguageEnglish (others on request)
ButtonsEmergency button
User authenticationRFID card, app (optional)
RFID readerISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Connectivity
Network4G, Wi-Fi, Ethernet
Backend protocolOCPP 1.6J
EV protocolDIN 70121, ISO 15118
Environment
Operating temperature−30 to +50 °C (derating above 50 °C)
Storage temperature−40 to +70 °C
Humidity / altitude5–95% non-condensing / ≤2000 m
Corrosion classC3-M
IP / IK ratingIP55 / IK10
CoolingForced air
Mechanical
Cable length5 m
Cable management reach5 m cable → approx. 4 m operating range (cable off the ground)
Dimensions (W × H × D)700 × 1650 × 470 mm without CMS; 1020 × 1770 × 470 mm with CMS
WeightApprox. 205 kg excl. power modules and CMS; CMS approx. 33 kg; 15 kg per power module
InstallationGround mounting
Compliance
StandardsIEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU
CertificationCE-RED, CB, NBTC, PTEC, PEA list

Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.

Approvals

Certified for the Thai market on top of CE-RED and CB.

Long-run An aerial view of a road through forested hills at dawn support.

A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
