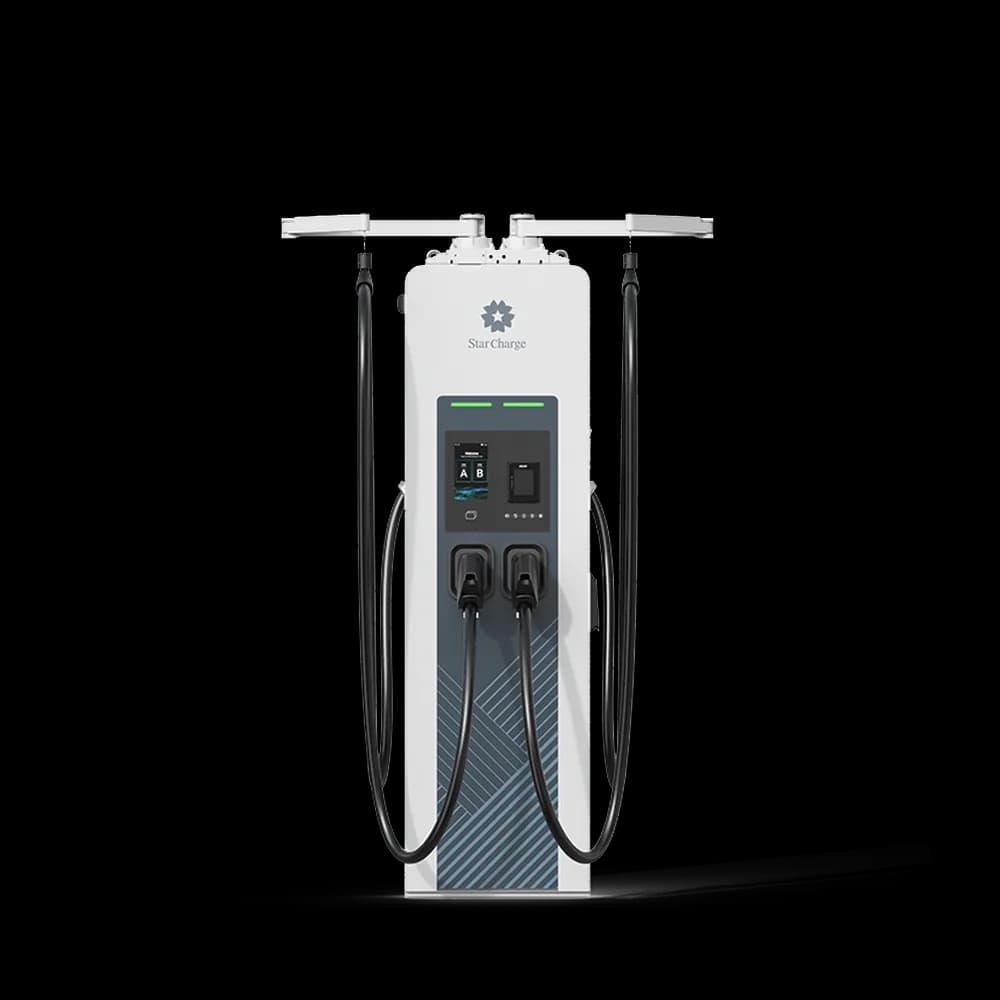

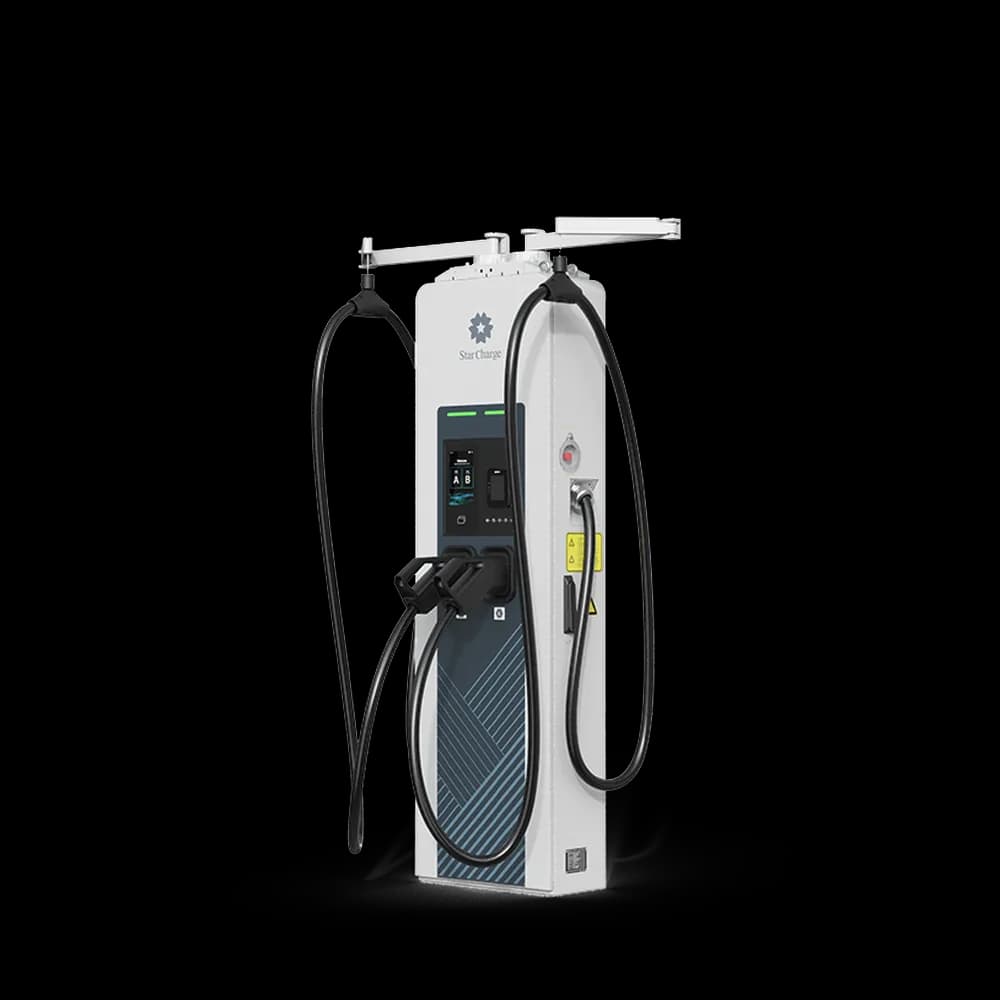

Hydrus Pro
600 A. Right at the kerb.
A dual-CCS2 dispenser fed by a Nova or Nereus power cabinet, with a 400 A rated and 600 A maximum output, a 7-inch touch screen and a slim 500 × 1700 × 250 mm footprint.
Key facts
- Maximum output current
- 600 A
- Connectors
- 2 × CCS2
- Maximum output voltage
- 1000 V
- Dispenser weight
- 131 kg
Highlights
Slim, smart design
A slim dispenser that fits at the kerb, 500 mm wide.
600 A maximum
400 A rated and 600 A maximum DC output current per connector.
150–1000 V DC output
A wide output voltage range for today's and tomorrow's vehicles.
Cable management
User-friendly cable management system keeps the 5 m cable off the ground.
Flexible authentication
RFID card, QR code, app (optional), free charging and MAC.
Cabinet-fed
Pairs with the Nova V4, Nova V5 or Nereus 720 LC power cabinet.
Slim enough for the kerbside.
- 600 A maximum per connector
- 150–1000 V DC output
- Cable kept off the ground
- RFID, QR code and app
- Fed by a Nova or Nereus cabinet
Technical specifications
| Version | Hydrus Pro | |
|---|---|---|
| Power | Auxiliary input | 230 V AC ±10%, 50/60 Hz, single-phase (L+N+PE) |
| Charging interface | CCS2 + CCS2 | |
| Output voltage | 150–1000 V DC | |
| Output current | 400 A rated (600 A max.) | |
| Metering | CE meter | |
| Interface | Screen | 7-inch touch screen |
| Status / button | LED indicator; emergency stop button | |
| User authentication | RFID card, QR code, app (optional), free charging, MAC | |
| Connectivity | Connectivity | Ethernet |
| EV protocol | DIN 70121, ISO 15118 | |
| Environment | Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m | |
| Corrosion class | C3-M | |
| IP / IK rating | IP55 / IK10 (screen IK08) | |
| Cooling | Forced air | |
| Mechanical | Cable length | 5 m |
| Dimensions (W × H × D) | 500 × 1700 × 250 mm without CMS; 500 × 1842 × 250 mm with CMS | |
| Weight | Approx. 131 kg | |
| Installation | Ground mounting | |
| Compliance | Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
| Version | Hydrus Pro |
|---|---|
| Power | |
| Auxiliary input | 230 V AC ±10%, 50/60 Hz, single-phase (L+N+PE) |
| Charging interface | CCS2 + CCS2 |
| Output voltage | 150–1000 V DC |
| Output current | 400 A rated (600 A max.) |
| Metering | CE meter |
| Interface | |
| Screen | 7-inch touch screen |
| Status / button | LED indicator; emergency stop button |
| User authentication | RFID card, QR code, app (optional), free charging, MAC |
| Connectivity | |
| Connectivity | Ethernet |
| EV protocol | DIN 70121, ISO 15118 |
| Environment | |
| Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m |
| Corrosion class | C3-M |
| IP / IK rating | IP55 / IK10 (screen IK08) |
| Cooling | Forced air |
| Mechanical | |
| Cable length | 5 m |
| Dimensions (W × H × D) | 500 × 1700 × 250 mm without CMS; 500 × 1842 × 250 mm with CMS |
| Weight | Approx. 131 kg |
| Installation | Ground mounting |
| Compliance | |
| Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.
Approvals
Certified for the Thai market on top of CE-RED and CB.
- CE-RED
- CB
- NBTC
- PTEC
- PEA list
Long-run
support.
A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
