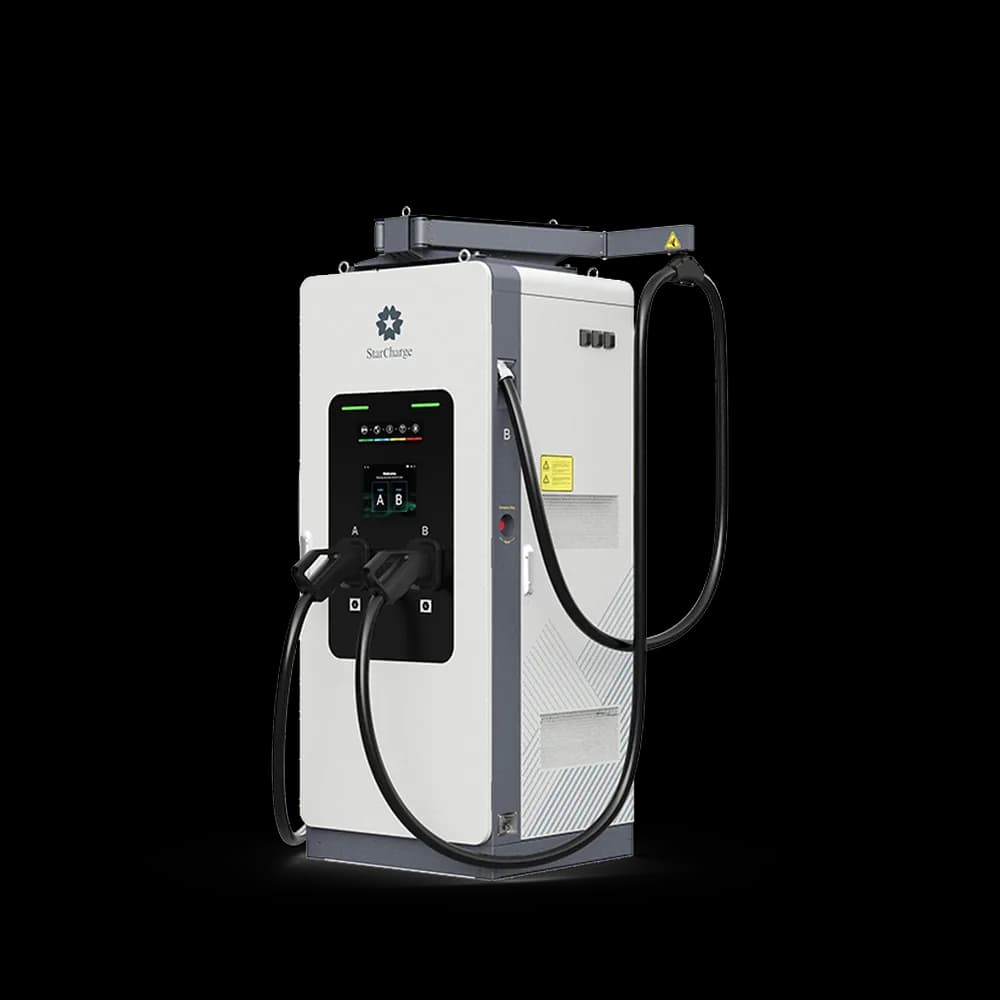

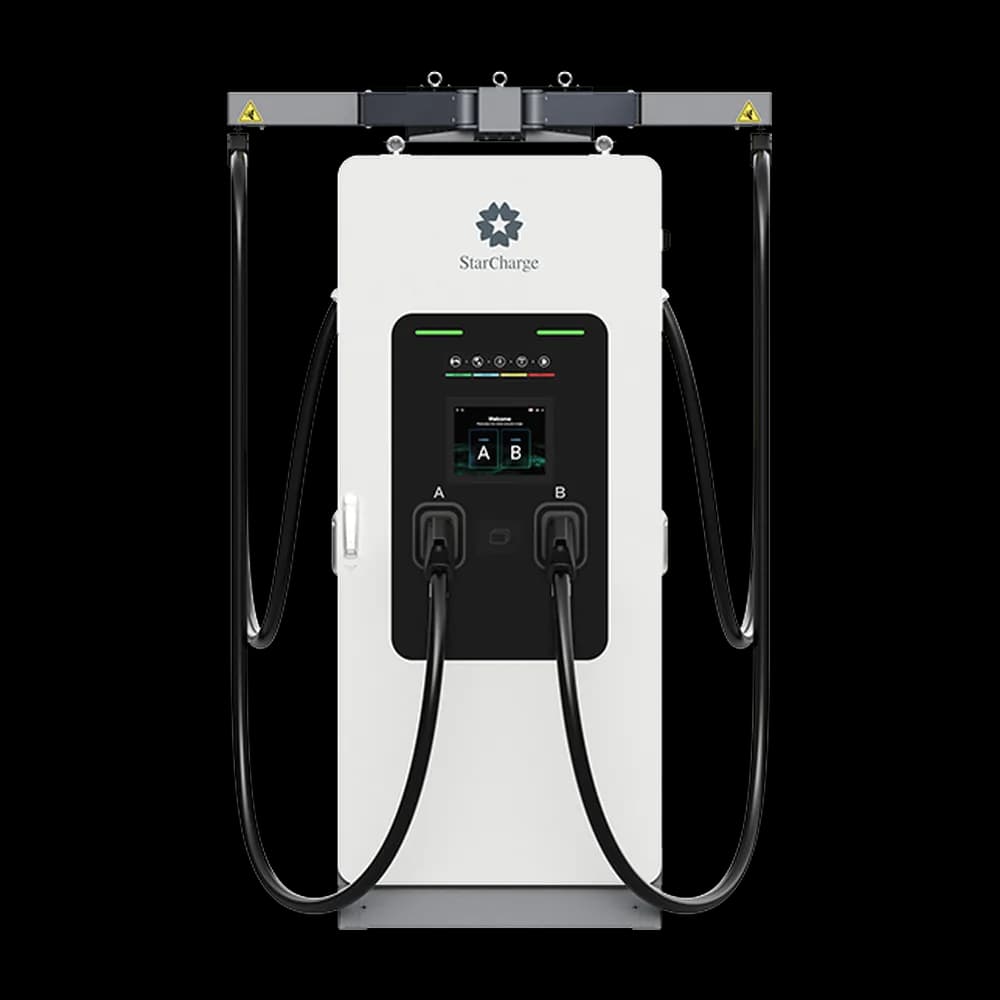

Titan V5
Fast. For every forecourt.
A compact dual-CCS2 all-in-one DC charger in 120, 180 and 240 kW tiers, all at 300 A rated. The Pro is the 240 kW unit with a 500 A maximum for the fastest sessions.
Key facts
- Maximum output
- 240 kW
- Maximum current, Pro
- 500 A
- Peak efficiency, 240 kW
- 96.5 %
- Connectors
- 2 × CCS2
Highlights
Three power tiers
120, 180 or 240 kW from the same 750 × 1790 × 720 mm cabinet.
500 A on the Pro
The Pro 240 kW raises the maximum output current from 300 A to 500 A.
150–1000 V DC output
A wide output voltage range for today's and tomorrow's vehicles.
OCPP 1.6J and 2.0.1
4G, Wi-Fi and Ethernet; DIN 70121 and ISO 15118 vehicle protocols.
Swing-arm cable management
Optional CMS gives about 3.8 m of operating range with the cable off the ground.
Rated to +55 °C
IP55 / IK10 with C3-M corrosion class; derating above 50 °C.
Choose your power. Keep the cabinet.
- 500 A maximum on the Pro
- 96.5% peak efficiency
- OCPP 1.6J and 2.0.1
- Optional swing-arm cable management
- Rated to +55 °C
Technical specifications
| Version | 120 kW | 180 kW | 240 kW | Pro 240 kW | |
|---|---|---|---|---|---|
| Input | AC rated input | 400 V / 3P+N+PE, 50/60 Hz; range 400 V ±15% | |||
| AC rated input current | 185 A | 277 A | 361 A | 361 A | |
| Power factor | ≥0.99 at full load | ||||
| Peak efficiency | 95% | 95% | 96.5% | 96.5% | |
| Grid type | TN-S, TN-C, TN-C-S, TT | ||||
| Output | Connector type | CCS2 + CCS2 | |||
| Output power | 120 kW max. | 180 kW max. | 240 kW max. | 240 kW max. | |
| Output voltage | 150–1000 V DC | ||||
| Output current | 300 A rated | 300 A rated | 300 A rated | 300 A rated, 500 A max. | |
| Interface | Display / language | 10.4-inch touch screen; English (others on request) | |||
| Buttons | Emergency stop button | ||||
| User authentication | RFID card, app (optional) | ||||
| RFID reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 | ||||
| Connectivity | Network | 4G, Wi-Fi, Ethernet | |||
| Backend / EV protocol | OCPP 1.6J, OCPP 2.0.1 / DIN 70121, ISO 15118 | ||||
| Environment | Operating temperature | −30 to +55 °C (derating above 50 °C) | |||
| Storage temperature | −40 to +70 °C | ||||
| Humidity / altitude | 5–95% non-condensing / ≤2000 m | ||||
| Corrosion class | C3-M | ||||
| Enclosure | IP55 / IK10 (screen IK08) | ||||
| Cooling | Forced air | ||||
| Mechanical | Cable / CMS | 5 m; swing-arm CMS optional, approx. 3.8 m operating range | |||
| Dimensions (W × H × D) | 750 × 1790 × 720 mm (without connector holder and CMS) | ||||
| Weight (without CMS) | Approx. 433 kg | Approx. 463 kg | Approx. 475 kg | Approx. 475 kg | |
| CMS weight | Approx. 28 kg | ||||
| Installation | Ground mounting | ||||
| Compliance | Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU | |||
| Certification | CE-RED, CB, NBTC, PTEC, PEA list | CE-RED, CB, NBTC, PTEC, PEA list, MEA list | CE-RED, CB, NBTC, PTEC, PEA list | CE-RED, CB, NBTC, PTEC, PEA list | |
| Version | 120 kW |
|---|---|
| Input | |
| AC rated input | 400 V / 3P+N+PE, 50/60 Hz; range 400 V ±15% |
| AC rated input current | 185 A |
| Power factor | ≥0.99 at full load |
| Peak efficiency | 95% |
| Grid type | TN-S, TN-C, TN-C-S, TT |
| Output | |
| Connector type | CCS2 + CCS2 |
| Output power | 120 kW max. |
| Output voltage | 150–1000 V DC |
| Output current | 300 A rated |
| Interface | |
| Display / language | 10.4-inch touch screen; English (others on request) |
| Buttons | Emergency stop button |
| User authentication | RFID card, app (optional) |
| RFID reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 |
| Connectivity | |
| Network | 4G, Wi-Fi, Ethernet |
| Backend / EV protocol | OCPP 1.6J, OCPP 2.0.1 / DIN 70121, ISO 15118 |
| Environment | |
| Operating temperature | −30 to +55 °C (derating above 50 °C) |
| Storage temperature | −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m |
| Corrosion class | C3-M |
| Enclosure | IP55 / IK10 (screen IK08) |
| Cooling | Forced air |
| Mechanical | |
| Cable / CMS | 5 m; swing-arm CMS optional, approx. 3.8 m operating range |
| Dimensions (W × H × D) | 750 × 1790 × 720 mm (without connector holder and CMS) |
| Weight (without CMS) | Approx. 433 kg |
| CMS weight | Approx. 28 kg |
| Installation | Ground mounting |
| Compliance | |
| Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.
Approvals
Certified for the Thai market on top of CE-RED and CB.
- CE-RED
- CB
- NBTC
- PTEC
- PEA list
- MEA list (180 kW)
Long-run
support.
A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
