DC Chargers

Venus V3

DC fast. On a wall.

Call us

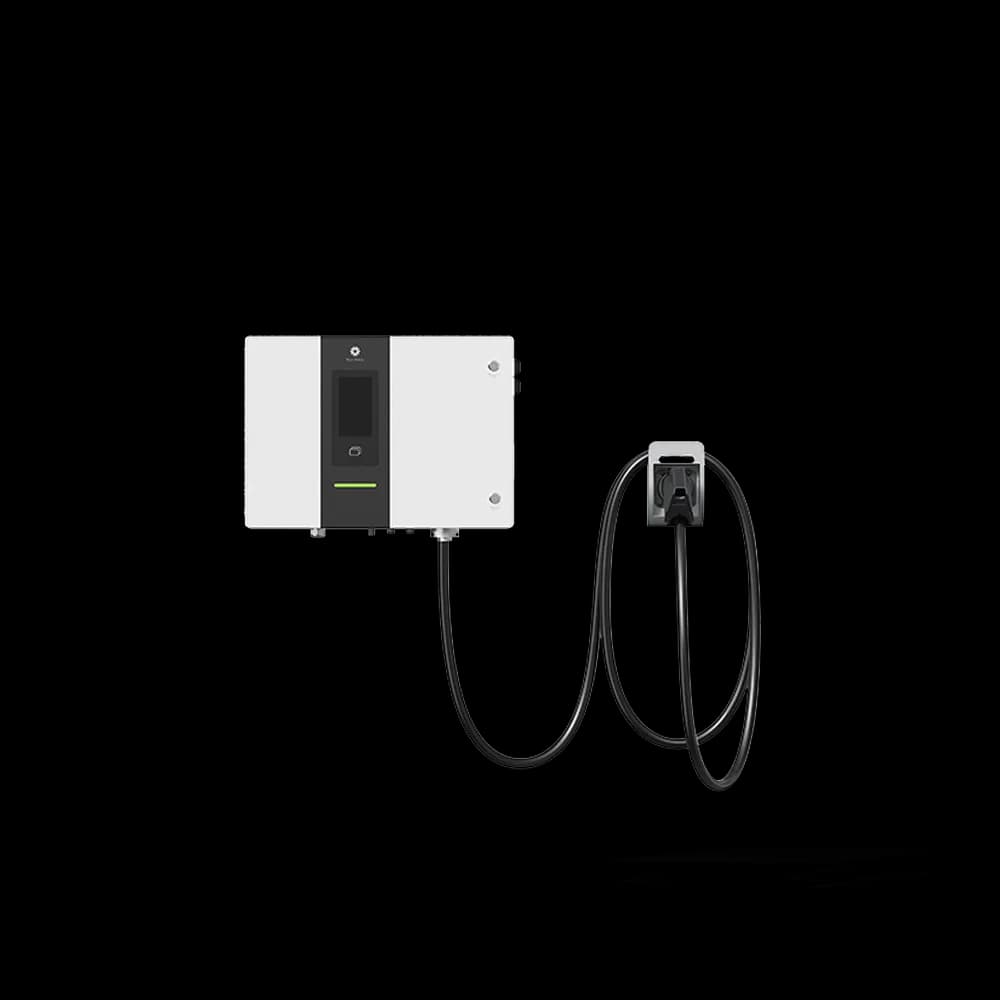

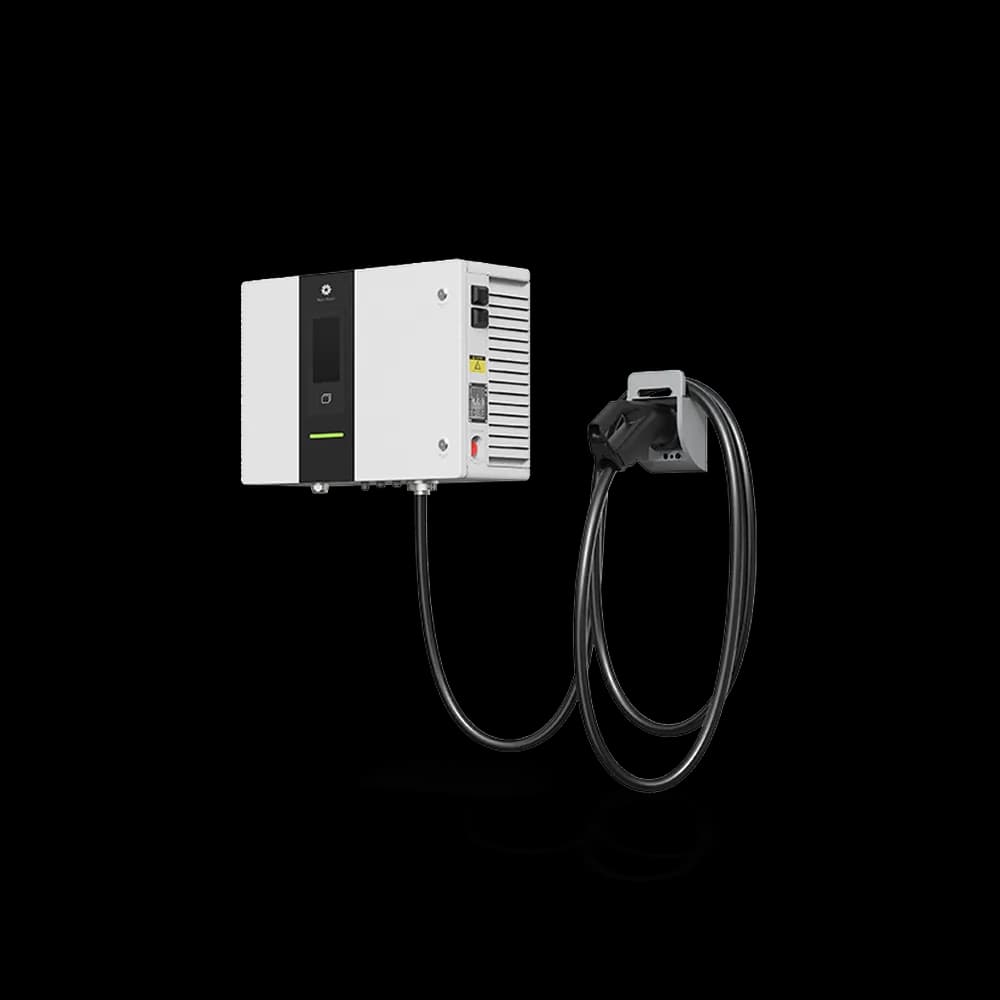

Venus V3 EV charger

A 30 kW single-CCS2 DC charger that mounts on a wall or a pole, for indoor and outdoor destination sites. 95% peak efficiency, a 7-inch touch screen with RFID, and an all-weather IP55 enclosure.

Maximum output
30 kW
Maximum output current
100 A
Peak efficiency
95 %
Including power modules
77 kg

Highlights

  • 95% peak efficiency

    100 A output current from a wall- or pole-mounted unit.

  • 7-inch touch panel

    LCD touch screen with an RFID card reader; app authentication supported.

  • Any OCPP 1.6J backend

    4G, Wi-Fi and Ethernet connectivity; OCPP 2.0.1 ongoing.

  • All-weather enclosure

    IP55 / IK10 and C3-M corrosion class, from −30 to +50 °C.

  • Wide voltage range

    150–1000 V DC output, compatible with most EVs on the market.

Venus V3 EV charger

Fast charging, off the floor.

  • 95% peak efficiency
  • 7-inch touch screen with RFID
  • 150–1000 V for most EVs
  • IP55 / IK10 all-weather enclosure
  • Any OCPP 1.6J backend

Technical specifications

Version30 kW
InputInput rating400 V AC ±15%, 3-phase, 50/60 Hz, L1+L2+L3+N+PE
Input current63 A AC
Power factor≥0.99 at full load
Peak efficiency95%
Grid typeTN-S, TN-C-S, TT
OutputOutput interface1 × CCS2
Output power30 kW max.
Output voltage150–1000 V DC
Output current100 A max.
InterfaceDisplay7-inch touch screen
LanguageEnglish (others on request)
ButtonsEmergency button
User authenticationRFID card, app
RFID readerISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
ConnectivityNetwork4G, Wi-Fi, Ethernet
Backend protocolOCPP 1.6J; OCPP 2.0.1 (ongoing)
EV protocolDIN 70121, ISO 15118
EnvironmentOperating temperature−30 to +50 °C
Storage temperature−40 to +70 °C
Humidity / altitude5–95% non-condensing / ≤2000 m
Corrosion classC3-M
IP / IK ratingIP55 / IK10 (screen IK08)
CoolingForced air
MechanicalCable length5 m
Dimensions (W × H × D)700 × 500 × 257 mm; pole 200 × 1431 × 100 mm
WeightApprox. 77 kg incl. power modules
InstallationWall mounting; pole mounting (pole optional)
ComplianceStandardsIEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU
CertificationCE-RED, CB, NBTC, PTEC, PEA list
Version30 kW
Input
Input rating400 V AC ±15%, 3-phase, 50/60 Hz, L1+L2+L3+N+PE
Input current63 A AC
Power factor≥0.99 at full load
Peak efficiency95%
Grid typeTN-S, TN-C-S, TT
Output
Output interface1 × CCS2
Output power30 kW max.
Output voltage150–1000 V DC
Output current100 A max.
Interface
Display7-inch touch screen
LanguageEnglish (others on request)
ButtonsEmergency button
User authenticationRFID card, app
RFID readerISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Connectivity
Network4G, Wi-Fi, Ethernet
Backend protocolOCPP 1.6J; OCPP 2.0.1 (ongoing)
EV protocolDIN 70121, ISO 15118
Environment
Operating temperature−30 to +50 °C
Storage temperature−40 to +70 °C
Humidity / altitude5–95% non-condensing / ≤2000 m
Corrosion classC3-M
IP / IK ratingIP55 / IK10 (screen IK08)
CoolingForced air
Mechanical
Cable length5 m
Dimensions (W × H × D)700 × 500 × 257 mm; pole 200 × 1431 × 100 mm
WeightApprox. 77 kg incl. power modules
InstallationWall mounting; pole mounting (pole optional)
Compliance
StandardsIEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU
CertificationCE-RED, CB, NBTC, PTEC, PEA list

Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.

Approvals

Certified for the Thai market on top of CE-RED and CB.

Long-run An aerial view of a road through forested hills at dawn support.

A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
