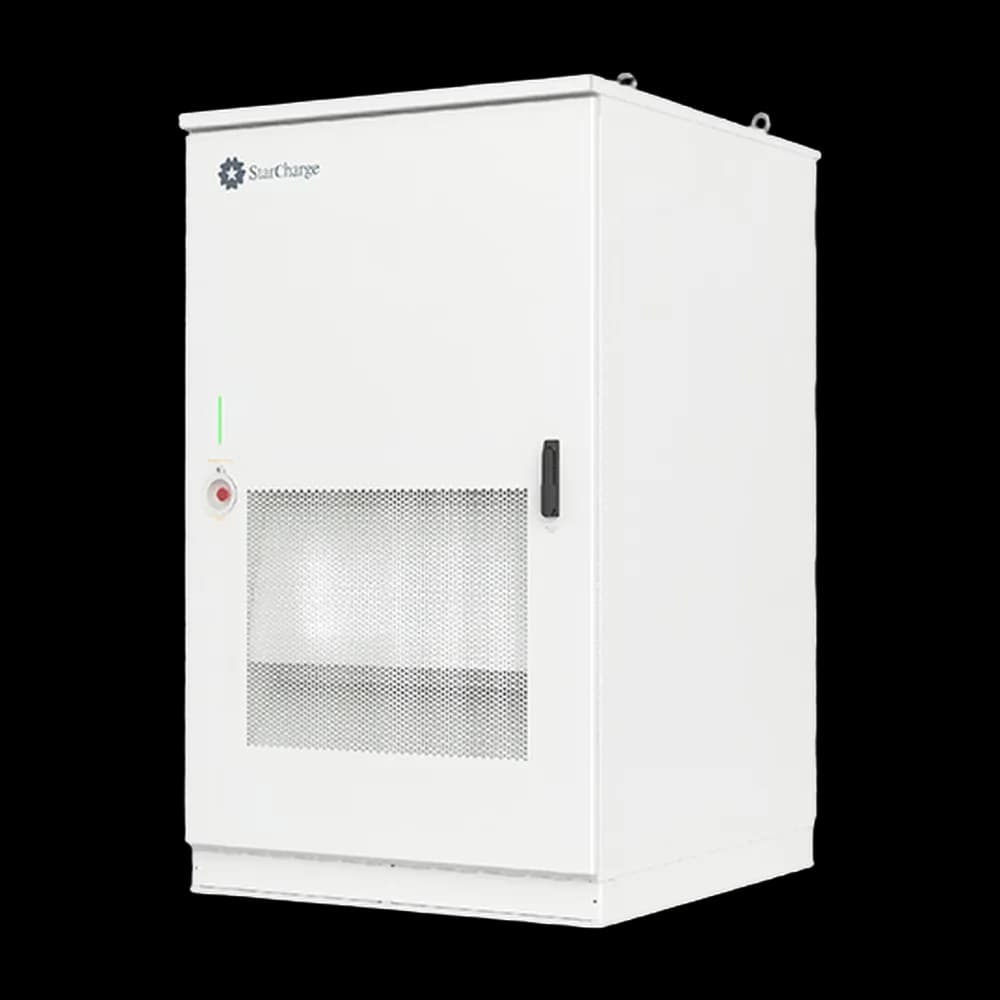

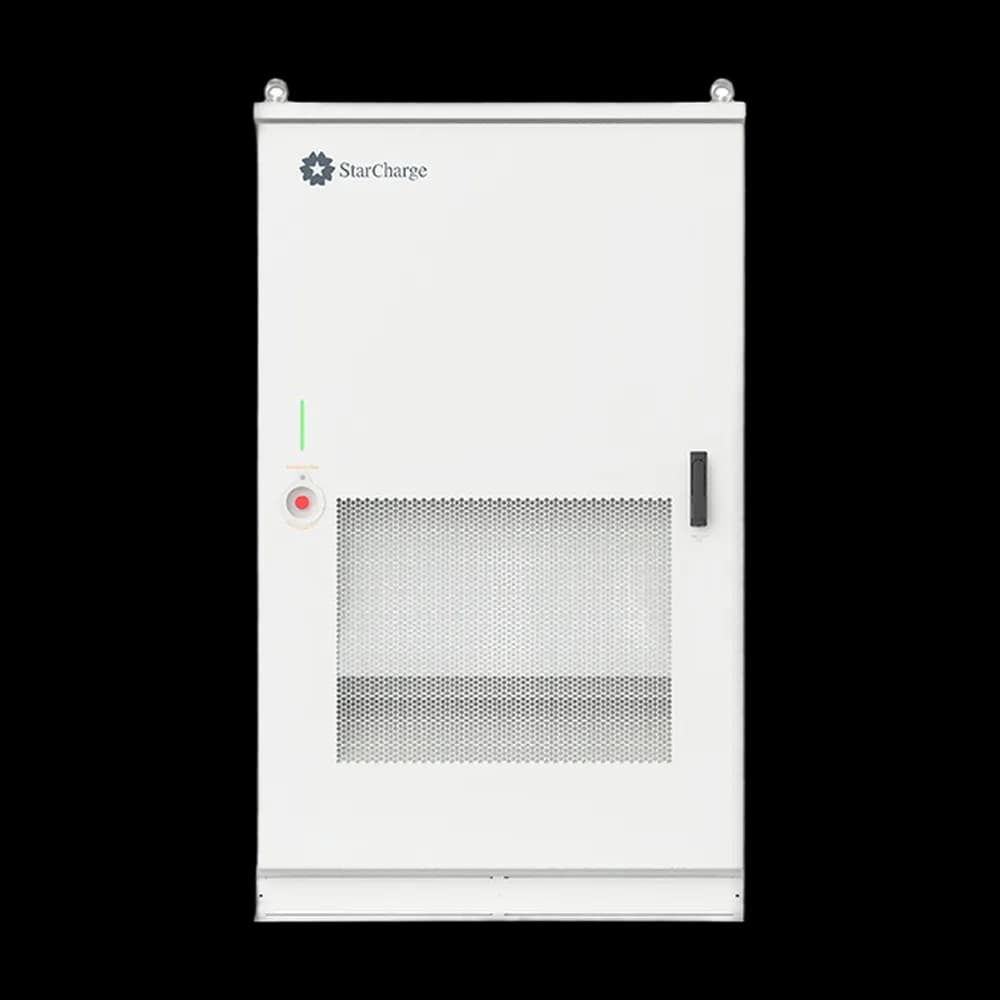

Nova V5
Same power. Smaller footprint.
A next-generation air-cooled 480 kW power cabinet on the Star-link Power Pool, where one connector can draw on every module. Smaller and lighter than the Nova V4, with up to 12 outputs.
Key facts
- Maximum output
- 480 kW
- Dispenser connectors per cabinet
- 12
- Peak efficiency
- 96.5 %
- Cabinet weight
- 660 kg
Highlights
Smart power pool
Up to 480 kW in total, shared across every connected dispenser.
Up to 12 outputs
One cabinet feeds up to 12 dispenser connectors from a small footprint.
Compact cabinet
1050 × 1750 × 1150 mm and approx. 660 kg.
OCPP 1.6J and 2.0.1
4G, Wi-Fi and Ethernet connectivity.
Built for Thai sites
IP55 / IK10 with C3-M corrosion class, from −30 to +50 °C.
Every module behind every connector.
- 480 kW in total
- Up to 12 outputs
- Compact 660 kg cabinet
- OCPP 1.6J and 2.0.1
- IP55 / IK10, −30 to +50 °C
Technical specifications
| Version | 480 kW | |
|---|---|---|
| Input | AC input voltage | 400 V AC ±15%, 3-phase, 50/60 Hz, 2 × (L1+L2+L3+N+PE) |
| AC input current | 737 A | |
| Power factor | ≥0.99 at full load | |
| Peak efficiency | 96.5% | |
| Earthing system | TN-S, TN-C-S, TT | |
| Output | Output power | 480 kW |
| Output voltage | 150–1000 V DC | |
| Output current | 1600 A max. | |
| Overvoltage category | CAT III | |
| Max. dispenser connectors | 12 per cabinet | |
| Interface and connectivity | Button / status | Emergency stop button; LED indicator |
| Connectivity | 4G, Wi-Fi, Ethernet | |
| Backend protocol | OCPP 1.6J / OCPP 2.0.1 | |
| Environment | Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m | |
| Corrosion class | C3-M | |
| IP / IK rating | IP55 / IK10 | |
| Cooling | Forced air | |
| Mechanical | Dimensions (W × H × D) | 1050 × 1750 × 1150 mm |
| Weight | Approx. 660 kg | |
| Installation | Ground mounting | |
| Compliance | Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
| Version | 480 kW |
|---|---|
| Input | |
| AC input voltage | 400 V AC ±15%, 3-phase, 50/60 Hz, 2 × (L1+L2+L3+N+PE) |
| AC input current | 737 A |
| Power factor | ≥0.99 at full load |
| Peak efficiency | 96.5% |
| Earthing system | TN-S, TN-C-S, TT |
| Output | |
| Output power | 480 kW |
| Output voltage | 150–1000 V DC |
| Output current | 1600 A max. |
| Overvoltage category | CAT III |
| Max. dispenser connectors | 12 per cabinet |
| Interface and connectivity | |
| Button / status | Emergency stop button; LED indicator |
| Connectivity | 4G, Wi-Fi, Ethernet |
| Backend protocol | OCPP 1.6J / OCPP 2.0.1 |
| Environment | |
| Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m |
| Corrosion class | C3-M |
| IP / IK rating | IP55 / IK10 |
| Cooling | Forced air |
| Mechanical | |
| Dimensions (W × H × D) | 1050 × 1750 × 1150 mm |
| Weight | Approx. 660 kg |
| Installation | Ground mounting |
| Compliance | |
| Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.
Approvals
Certified for the Thai market on top of CE-RED and CB.
- CE-RED
- CB
- NBTC
- PTEC
- PEA list
Long-run
support.
A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
